VIA Neo-ITX $49 APC System!

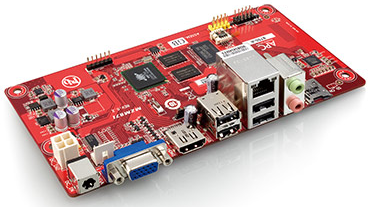

VIA Mini-ITX BoardThis is an article from May of 2012, so it is kinda old news, but it is the first I have seen of it. This looks like it would really be fun and geeky to play with!

VIA launches Neo-ITX with $49 APC Android PC

“VIA today announced the APC 8750 Android PC system, a small footprint low power consumption motherboard with a $49 price point.

Comparisons will inevitably be made with the Raspberry Pi.

However the APC 8750 looks to have a less painful out of the box experience, with Android OS and applications pre-loaded on NAND Flash, a form-factor compatible with PC cases and a wider selection of ports fitted to just one side of the motherboard.

The APC 8750 runs a custom build of Android 2.3 with a selection of pre-installed apps including a browser, all pre-loaded on 2GB of NAND Flash memory. A microSD Slot allows further expansion.

The Neo-ITX Form Factor used by the APC measures 170 x 85mm and is exactly 1/2 the area of the 170 x 170mm Mini-ITX form factor. Neo-ITX boards will fit into any Mini-ITX chassis (perhaps with the addition of a couple of plastic standoffs at the rear for stability).

The APC 8750 is powered by a Wondermedia WM8750 SoC running at 800MHz which supports H264 decoding for 720p video playback. Power consumption is just 4W idle and 13.5W under peak load.

Full Specifications of the APC 8750: Operating System: Android 2.3; Processor: VIA 800MHz Processor (Wondermedia WM8750); Memory: 512MB DDR3 RAM, 2GB NAND Flash; Graphics: Built-in 2D/3D, resolution up to 720p; Ports: HDMI, VGA, 4x USB 2.0, 3.5mm Mic In, 3.5mm Audio Out, microSD slot, 10/100 Ethernet; Power: 15W AC Adapter; Size: 170mm x 85mm (Neo-ITX form factor).”
